Sealevel Station Catalog (SSC)
Station catalog metadata [edit][station overview]
SSC IDSSC-lali
Station NameLa Libertad
CountryEcuador
Latitude-2.209
Longitude-80.902
DateLastModified2015-10-22 19:02:29
Linked codes
CodesLocationLatitudeLongitudeSensors
IOC: laliLa_Libertad_EC-2.2177-80.9064prs, enc, bat, rad, sw1, sw2
GLOSS: 172La Libertad-2.2-80.91666Float
UHSLC: 91N/AN/A
PTWC: laliLa_Libertad_EC-2.2177-80.9063prs, enc, rad
PSMSL: 544LA LIBERTAD II-2.2-80.916667N/A
PSMSL: 555LA LIBERTAD-2.2-80.916667N/A
SONEL_GPS: 2082LA LIBERTAD-2.18620000-80.99085000N/A
SONEL_GPS: 3510LA LIBERTAD-2.21963300-80.90399200N/A
SONEL_TG: 2444LA LIBERTAD-2.21770700-80.90640000N/A
SONEL_TG: 2445LA LIBERTAD-2.21770700-80.90640000N/A
Distributed metadata source: IOC Sea Level Station Monitoring Facility lali
GTS station code3540B126
GTS message typeSEPO40
Transmit interval (min)5
StatusOperational
Local ContactInstituto Oceanogr√°fico de la Armada ( Ecuador )
Other ContactUniversity of Hawaii Sea Level Center ( USA )
Added to the system2007-12-21 04:31:00
ConnectionGTS message
CountryEcuador
Sensor 1
  Type of sensorprs
  Sampling rate (min)1
  Samples10
  Units of measurem
  First value5
  Reversed orderyes
Sensor 2
  Type of sensorrad
  Sampling rate (min)1
  Samples10
  Units of measurem
  First value18
  Reversed orderyes
Sensor 3
  Type of sensorenc
  Sampling rate (min)5
  Samples6
  Units of measurem
  First value31
  Reversed orderyes
Sensor 4
  Type of sensorsw1
  Sampling rate (min)60
  Samples1
  Units of measuremin
  First value40
  Reversed orderno
Sensor 5
  Type of sensorsw2
  Sampling rate (min)60
  Samples1
  Units of measuremin
  First value44
  Reversed orderno
Sensor 6
  Type of sensorbat
  Sampling rate (min)5
  Samples1
  Units of measureV
  First value48
  Reversed orderno
Distributed metadata source: GLOSS Station Handbook
Time Zone105W, GMT - 5hrs
OceanPacific
OperationalYes
Responsible countryEcuador
Additional parametersSea temperature
Tide gauge benchmarksBME - it is a standard disc with the inscription 'BME-48'. It is located in an electric house cement base. The house is 50 metres from the principal oil gate and 150 metres to the south of the oil terminal pier.
Other relevant informationPSMSL also hold data from another gauge at La Libertad (PSMSL Code 845/ 011 1948-1969).
Other relevant codesUHSLC 091
Nearest Met. stationSalinas
Distributed metadata source: PTWC COMP META file
DCP ID3540B126
WMOSEPO40
Samp Rate5
Num# Samp5
UnitM
Scale1.0000
Xmt Int.005
Fst Min.0003
HAR1
OwnerUHSLC
Data availability
IOC Sea Level Station Monitoring Facility - realtime graph for 'lali'

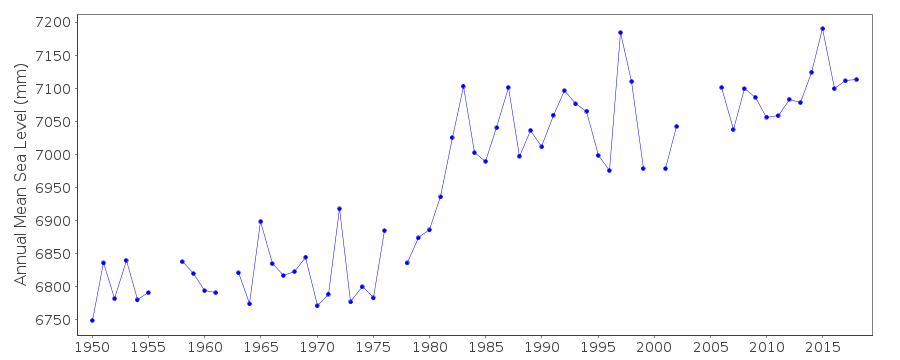

PSMSL Annual Mean Sea Level for '544'
PSMSL Annual Mean Sea Level for '555'
